foot rolls alignment according to mould position and bending radius

FRC

foot rolls alignment tool

INTRODUCTION

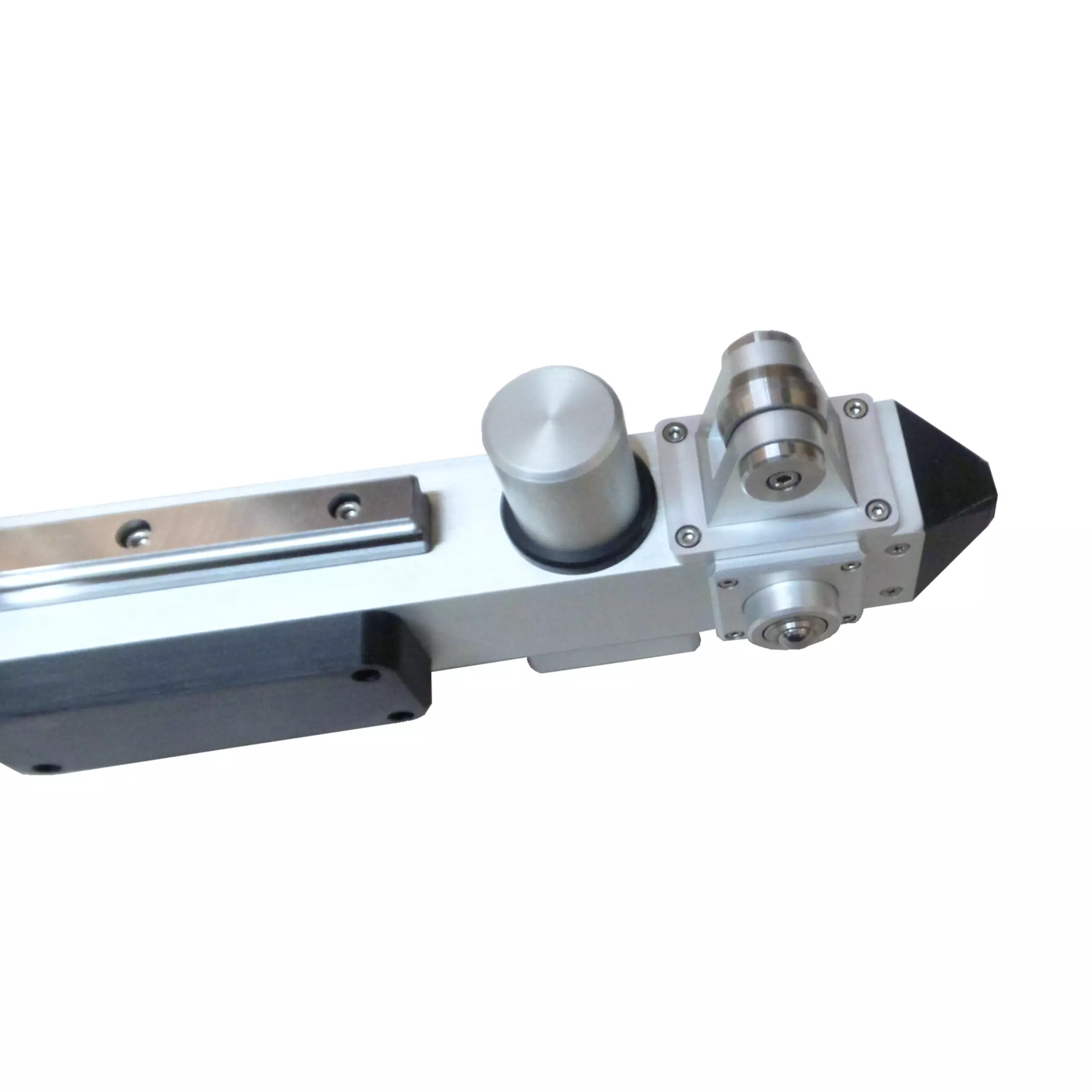

FRC is a foot roll alignment tool. It can be used to check the alignment of foot rolls with respect to the mould taper position, tangent point and bending radius.

It’s equipped by a rugged tablet PC where the operator can check on real-time the roll’s position error. Using the measure error indication, foot roll position can be adjusted for a perfect alignment with the mould.

Do you have any question?

Download the brochure

Download the Product
Presentation Brochure

Technical Documents

Request the detailed technical
specifications of the EMTM33 tool

PRODUCT DESCRIPTION

CHARACTERISTIC

FEATURES

SOFTWARE

BENEFITS

CHARACTERISTIC

FEATURES	VALUES
Taper form supported	Square/Rectangular (size as requested)
Technology	Mechanincal contact probes
Roll Alignment Resolution	+/- 0.1 mm
Operator Interface	Rugged tablet PC
Data transmission	Bluetooth
Battery operative time	8 hours
Environmental Protection	IP62

FEATURES

SOFTWARE

BENEFITS

FRC tool benefits:Economical gain due to:

Speedup mould and foot rolls assembly operations Reduction of break-out or product defects due to the wrong mould vs foot rolls alignment Standard operator procedure for foot rolls positioning and check	Product quality Maintenance cost reduction CCM stop reduction CCM productivity
